TITAN Tutorial


This interactive tutorial takes you through the steps of how to run the Thunderstorm Identification, Tracking, Analysis and Nowcasting (TITAN) suite. TITAN was originally designed as an algorithm to objectively identify and track thunderstorms from weather radar data for a weather modification experiment in South Africa in the 1980s. Now, Titan includes forecasting, storm analysis, and climatological analysis. TITAN now refers to the larger system in which the original application is one component.

Titan is described in more detail in Dixon and Wiener (1993).


Titan Background

TITAN identifies storm objects as a contiguous region of echo that exceeds a user-defined reflectivity threshold and minimum volume. Dual thresholds are used to deal with storm objects that briefly touch, but do not merge. Storm tracking is performed by looking for regions of overlap between storm objects at successive time intervals. Short term storm extrapolation forecasts are used to identify instances of storm merging and splitting. TITAN output includes storm tracks, polygons outlining the storm objects, and storm property information (e.g., volume, area, mass, precipitation flux).

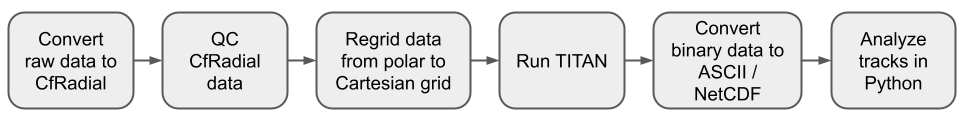

The high-level workflow for TITAN is shown in the graphic below. Key steps include quality controlling the data to remove any non-meteorological or compromised echoes and gridding the data to a Cartesian grid. Once TITAN is run and the tracks are produced, those data need to be converted into more user-friendly file types.

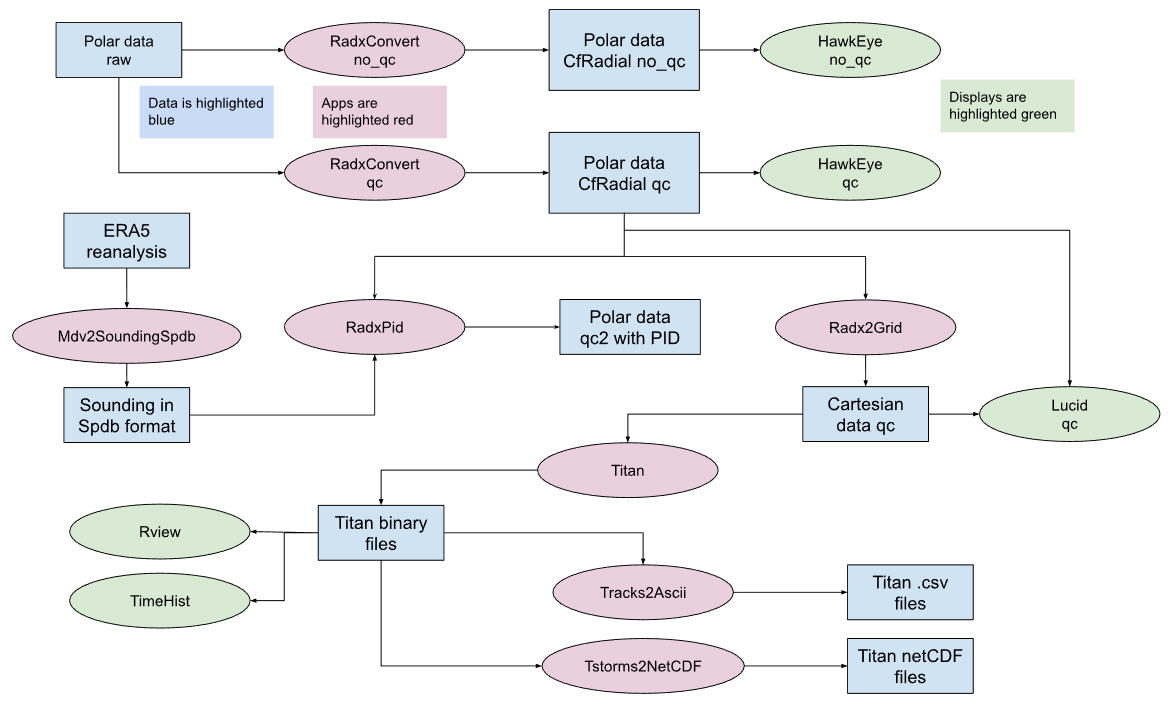

A more detailed workflow for TITAN that includes each step, application, and data type is shown in the graphic below.

Tutorial Overview

1. Setup

Download raw data and prepare parameter files

Raw data files that are provided:

  • A hail storm in Alberta, observed by the Strathmore radar 40 km east Calgary.
  • A derecho event in Ontario, observed by the King City radar 40 km north of Toronto.

Both of these are 10 cm (S-band) Gematronik dual polarization radars.

The data (as a .tgz file) has been provided in the form of a zipped tar file, which we will unzip create the following tree:

  ./data/titan/ERA5/20220521
  ./data/titan/ERA5/20240806
  ./data/titan/radar/raw/hail/20240806*.h5
  ./data/titan/radar/raw/derecho/20220521*.h5

2. Output data

After the full analysis has been run, the following derived data directories should exist:

  ./data/titan/ERA5/spdb/Strathmore/20240806* (soundings from ERA5)
  ./data/titan/ERA5/spdb/KingCity/20220521* (soundings from ERA5)
  ./data/titan/radar/cfradial/qc/Strathmore/20240806/cfrad.20240806*nc (cfradial after QC)
  ./data/titan/radar/cfradial/qc/KingCity/20220521/cfrad.20220521*nc (cfradial after QC)
  ./data/titan/radar/cfradial/pid/Strathmore/20240806/cfrad.20240806*nc (cfradial PID)
  ./data/titan/radar/cfradial/pid/Strathmore/20240806/cfrad.20240806*nc (cfradial PID)
  ./data/titan/radar/cart/qc/Strathmore/20240806/ncf_20240806*nc (Cartesian MDC CF-compliant netcdf)
  ./data/titan/radar/cart/qc/KingCity/20220521/ncf_202205216*nc (Cartesian MDC CF-compliant netcdf)
  ./data/titan/titan/storms/Strathmore/20240806* (Titan binary files)
  ./data/titan/titan/storms/KingCity/20220521* (Titan binary files)
  ./data/titan/titan/ascii/Tracks2Ascii.hail.txt (Titan output converted by Tracks2Ascii)
  ./data/titan/titan/ascii/Tracks2Ascii.derecho.txt (Titan output converted by Tracks2Ascii)
  ./data/titan/titan/netcdf/Strathmore/titan_20240806.nc (Titan output converted by Tstorms2NetCDF)
  ./data/titan/titan/netcdf/KingCity/titan_20220521.nc (Titan output converted by Tstorms2NetCDF)

3. Note on task cells

This notebook uses two colored cells to indicate tasks.

File Task: modify parameters in text files.

These text blocks help the user modify the parameter files or other functions in external text files.

Cell Task: run a command in Jupyter notebook cell.

These text blocks instruct the users to run a command in a cell within the Jupyter notebook. If you prefer, you are welcome to copy the commands (minus the ! symbol) into a terminal window.


1. Setup

Environment and packages

First, we import the required python packages to run this notebook. Most of the LROSE processing can be done with the os package and shell commands.

import os
import subprocess

import warnings

warnings.filterwarnings("ignore")

import os
import fsspec
import glob
import numpy as np
import matplotlib.pyplot as plt
import matplotlib.ticker as plticker
from matplotlib.lines import Line2D
import cartopy.crs as ccrs
import cartopy.io.shapereader as shpreader
import cartopy.geodesic as cgds
from cartopy.mpl.gridliner import LONGITUDE_FORMATTER, LATITUDE_FORMATTER
from cartopy import feature as cfeature
import xarray as xr
import pyart

## You are using the Python ARM Radar Toolkit (Py-ART), an open source
## library for working with weather radar data. Py-ART is partly
## supported by the U.S. Department of Energy as part of the Atmospheric
## Radiation Measurement (ARM) Climate Research Facility, an Office of
## Science user facility.
##
## If you use this software to prepare a publication, please cite:
##
##     JJ Helmus and SM Collis, JORS 2016, doi: 10.5334/jors.119

1.1 Set up directories

We need to set up the required data directories. The raw radar data will be grabbed from the S3 bucket. We delete any existing files and directories specific to this tutorial to ensure we’re starting with clean directories and files.

# make overall titan directory and application output directory
!mkdir -p ./data/titan/titan

# make directory for output ascii files from TITAN
!mkdir -p ./data/titan/titan/ascii

1.2 Set up the environment

First, we’ll set some key variables we’ll need throughout the workflow.

# Set directory variable to call LROSE
os.environ["LROSE_DIR"] = "/usr/local/lrose/bin"
os.environ["DATA_DIR"] = "./"

1.3 Get data

Because some of the preprocessing requires ancillary data, we need to grab and untar that data.

import os
import fsspec
import shutil

# Remote endpoint and path
URL = "https://js2.jetstream-cloud.org:8001/"
path = "pythia/radar/ams2025"

# Initialize filesystem
fs = fsspec.filesystem("s3", anon=True, client_kwargs=dict(endpoint_url=URL))

# Get list of files (example: Ontario Derecho)
files = fs.glob(f"{path}/OntarioDerecho2022/2022052115*.h5")

# Local base directory where you want to store files
local_base = "./radar/raw/derecho"

for remote_file in files:
    # Construct local file path, preserving the relative directory structure
    rel_path = os.path.relpath(remote_file, start=path)
    local_file = os.path.join(local_base, rel_path)

    # Ensure parent directories exist
    os.makedirs(os.path.dirname(local_file), exist_ok=True)

    # Open remote and local files and copy
    with fs.open(remote_file, "rb") as fsrc, open(local_file, "wb") as fdst:
        shutil.copyfileobj(fsrc, fdst)

    print(f"Downloaded {remote_file} -> {local_file}")
Downloaded pythia/radar/ams2025/OntarioDerecho2022/2022052115_00_ODIMH5_PVOL6S_VOL_CASET.h5 -> ./radar/raw/derecho/OntarioDerecho2022/2022052115_00_ODIMH5_PVOL6S_VOL_CASET.h5
Downloaded pythia/radar/ams2025/OntarioDerecho2022/2022052115_00_ODIMH5_PVOL6S_VOL_CASKR.h5 -> ./radar/raw/derecho/OntarioDerecho2022/2022052115_00_ODIMH5_PVOL6S_VOL_CASKR.h5
Downloaded pythia/radar/ams2025/OntarioDerecho2022/2022052115_06_ODIMH5_PVOL6S_VOL_CASET.h5 -> ./radar/raw/derecho/OntarioDerecho2022/2022052115_06_ODIMH5_PVOL6S_VOL_CASET.h5
Downloaded pythia/radar/ams2025/OntarioDerecho2022/2022052115_06_ODIMH5_PVOL6S_VOL_CASKR.h5 -> ./radar/raw/derecho/OntarioDerecho2022/2022052115_06_ODIMH5_PVOL6S_VOL_CASKR.h5
Downloaded pythia/radar/ams2025/OntarioDerecho2022/2022052115_12_ODIMH5_PVOL6S_VOL_CASET.h5 -> ./radar/raw/derecho/OntarioDerecho2022/2022052115_12_ODIMH5_PVOL6S_VOL_CASET.h5
Downloaded pythia/radar/ams2025/OntarioDerecho2022/2022052115_12_ODIMH5_PVOL6S_VOL_CASKR.h5 -> ./radar/raw/derecho/OntarioDerecho2022/2022052115_12_ODIMH5_PVOL6S_VOL_CASKR.h5
Downloaded pythia/radar/ams2025/OntarioDerecho2022/2022052115_18_ODIMH5_PVOL6S_VOL_CASET.h5 -> ./radar/raw/derecho/OntarioDerecho2022/2022052115_18_ODIMH5_PVOL6S_VOL_CASET.h5
Downloaded pythia/radar/ams2025/OntarioDerecho2022/2022052115_18_ODIMH5_PVOL6S_VOL_CASKR.h5 -> ./radar/raw/derecho/OntarioDerecho2022/2022052115_18_ODIMH5_PVOL6S_VOL_CASKR.h5
Downloaded pythia/radar/ams2025/OntarioDerecho2022/2022052115_24_ODIMH5_PVOL6S_VOL_CASET.h5 -> ./radar/raw/derecho/OntarioDerecho2022/2022052115_24_ODIMH5_PVOL6S_VOL_CASET.h5
Downloaded pythia/radar/ams2025/OntarioDerecho2022/2022052115_24_ODIMH5_PVOL6S_VOL_CASKR.h5 -> ./radar/raw/derecho/OntarioDerecho2022/2022052115_24_ODIMH5_PVOL6S_VOL_CASKR.h5
Downloaded pythia/radar/ams2025/OntarioDerecho2022/2022052115_30_ODIMH5_PVOL6S_VOL_CASET.h5 -> ./radar/raw/derecho/OntarioDerecho2022/2022052115_30_ODIMH5_PVOL6S_VOL_CASET.h5
Downloaded pythia/radar/ams2025/OntarioDerecho2022/2022052115_30_ODIMH5_PVOL6S_VOL_CASKR.h5 -> ./radar/raw/derecho/OntarioDerecho2022/2022052115_30_ODIMH5_PVOL6S_VOL_CASKR.h5
Downloaded pythia/radar/ams2025/OntarioDerecho2022/2022052115_36_ODIMH5_PVOL6S_VOL_CASET.h5 -> ./radar/raw/derecho/OntarioDerecho2022/2022052115_36_ODIMH5_PVOL6S_VOL_CASET.h5
Downloaded pythia/radar/ams2025/OntarioDerecho2022/2022052115_36_ODIMH5_PVOL6S_VOL_CASKR.h5 -> ./radar/raw/derecho/OntarioDerecho2022/2022052115_36_ODIMH5_PVOL6S_VOL_CASKR.h5
Downloaded pythia/radar/ams2025/OntarioDerecho2022/2022052115_42_ODIMH5_PVOL6S_VOL_CASET.h5 -> ./radar/raw/derecho/OntarioDerecho2022/2022052115_42_ODIMH5_PVOL6S_VOL_CASET.h5
Downloaded pythia/radar/ams2025/OntarioDerecho2022/2022052115_42_ODIMH5_PVOL6S_VOL_CASKR.h5 -> ./radar/raw/derecho/OntarioDerecho2022/2022052115_42_ODIMH5_PVOL6S_VOL_CASKR.h5
Downloaded pythia/radar/ams2025/OntarioDerecho2022/2022052115_48_ODIMH5_PVOL6S_VOL_CASET.h5 -> ./radar/raw/derecho/OntarioDerecho2022/2022052115_48_ODIMH5_PVOL6S_VOL_CASET.h5
Downloaded pythia/radar/ams2025/OntarioDerecho2022/2022052115_48_ODIMH5_PVOL6S_VOL_CASKR.h5 -> ./radar/raw/derecho/OntarioDerecho2022/2022052115_48_ODIMH5_PVOL6S_VOL_CASKR.h5
Downloaded pythia/radar/ams2025/OntarioDerecho2022/2022052115_54_ODIMH5_PVOL6S_VOL_CASET.h5 -> ./radar/raw/derecho/OntarioDerecho2022/2022052115_54_ODIMH5_PVOL6S_VOL_CASET.h5
Downloaded pythia/radar/ams2025/OntarioDerecho2022/2022052115_54_ODIMH5_PVOL6S_VOL_CASKR.h5 -> ./radar/raw/derecho/OntarioDerecho2022/2022052115_54_ODIMH5_PVOL6S_VOL_CASKR.h5
import os
import fsspec
import shutil

# Remote endpoint and path
URL = "https://js2.jetstream-cloud.org:8001/"
path = "pythia/radar/ams2025/lrose/ams2025/ERA5"

# Initialize filesystem
fs = fsspec.filesystem("s3", anon=True, client_kwargs=dict(endpoint_url=URL))

# Get list of files (example: Ontario Derecho)
files = fs.glob(f"{path}/20220521/20220521_15*")

# Local base directory where you want to store files
local_base = "./ERA5"

for remote_file in files:
    # Construct local file path, preserving the relative directory structure
    rel_path = os.path.relpath(remote_file, start=path)
    local_file = os.path.join(local_base, rel_path)

    # Ensure parent directories exist
    os.makedirs(os.path.dirname(local_file), exist_ok=True)

    # Open remote and local files and copy
    with fs.open(remote_file, "rb") as fsrc, open(local_file, "wb") as fdst:
        shutil.copyfileobj(fsrc, fdst)

    print(f"Downloaded {remote_file} -> {local_file}")
Downloaded pythia/radar/ams2025/lrose/ams2025/ERA5/20220521/20220521_150000.mdv.cf.nc -> ./ERA5/20220521/20220521_150000.mdv.cf.nc

2. Prepare data for analysis

The following sections describe two quality control setups and how to run the scripts.

2.1: Option 1 - Apply quality control (QC) on the raw radar data and convert to CfRadial format using RadxConvert

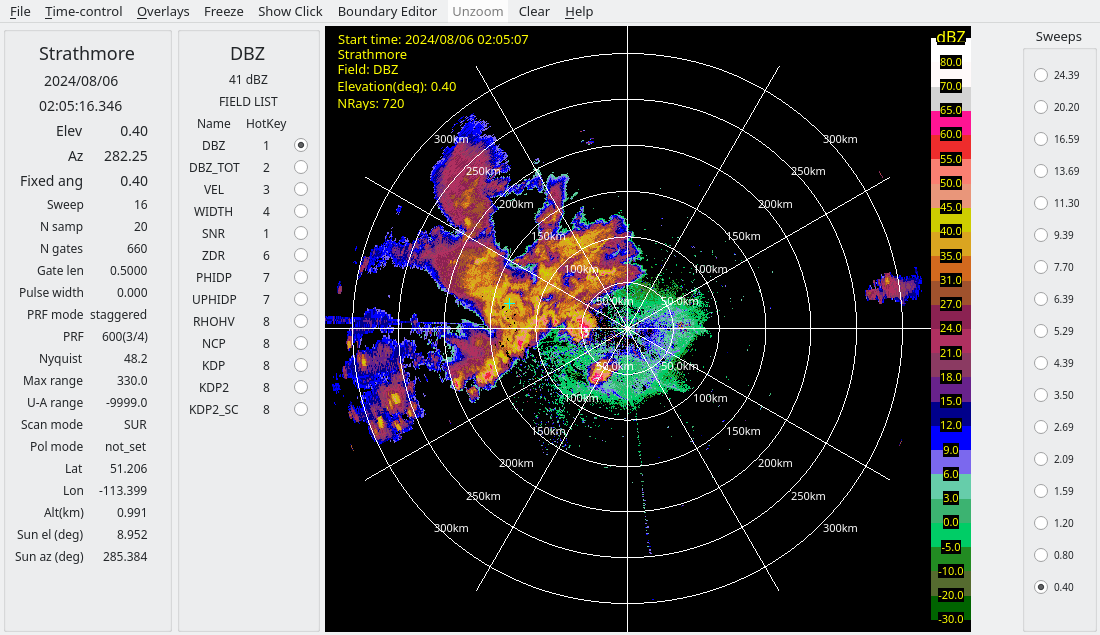

In the hail case, there is no significant signal interference.

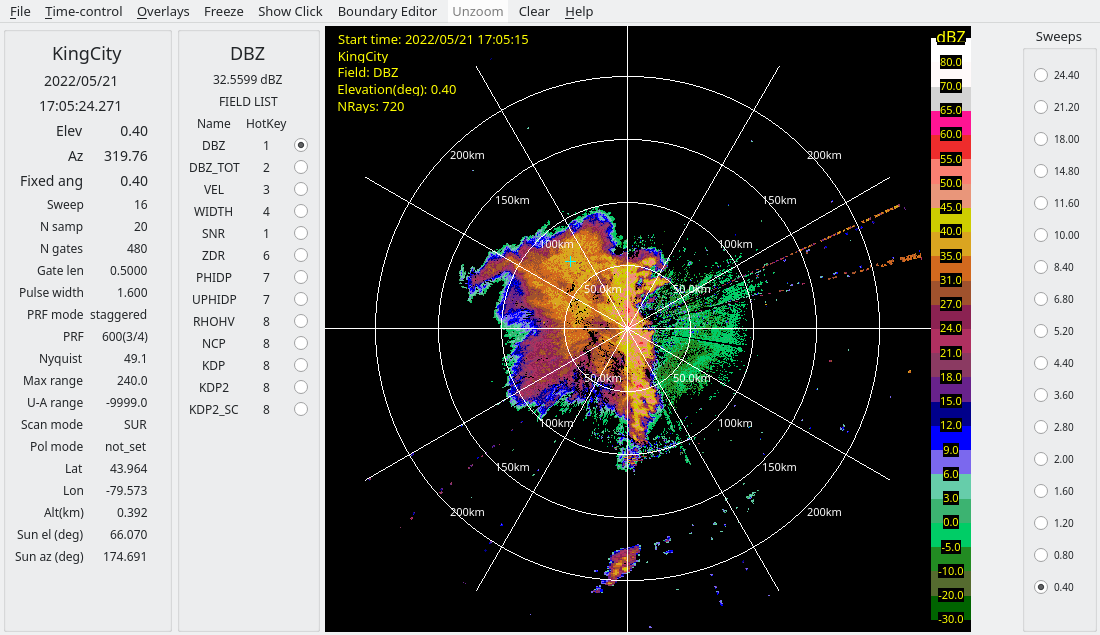

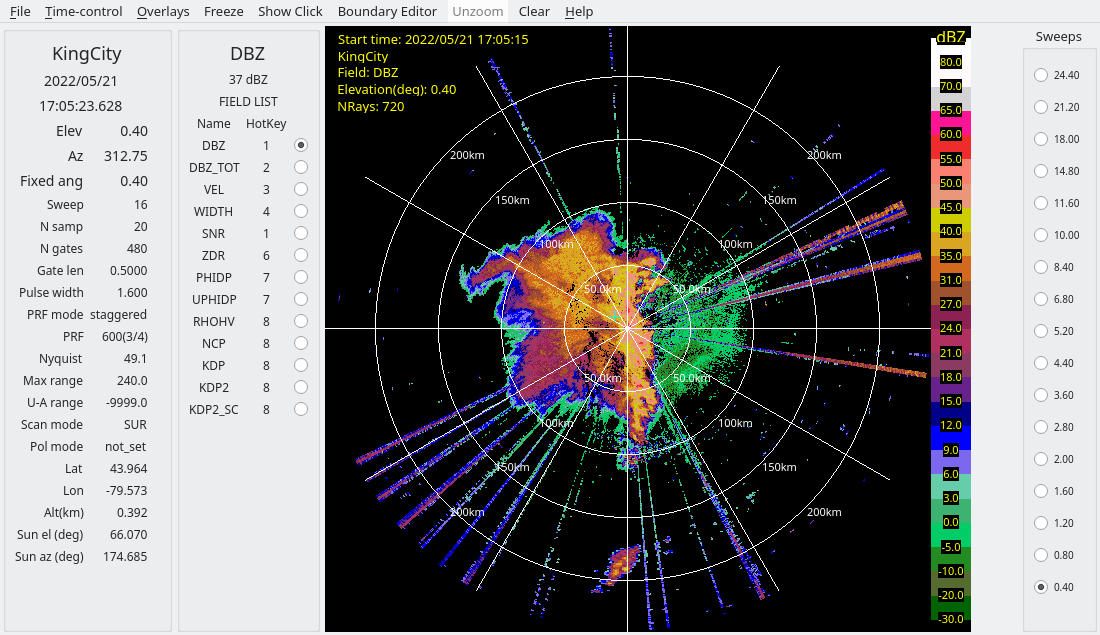

In the derecho case, considerable interference is present, appearing as radial spikes.

Closer inspection of these spikes shows that the interference sources are not coherent with the radars, as indicated by:

  • Low SQI (NCP)
  • Moderately low SNR

To address this, we use RadxConvert to censor data fields based on thresholds applied to the input fields. Specifically, data are removed at gates where both conditions are met:

  • SQI (NCP) < 0.2
  • SNR < 25 dB

Since later QC steps require signal-to-noise ratio (SNR), the SNR field is derived from reflectivity (DBZ) and added during processing.

Finally, the raw HDF5 files are converted to CfRadial format using RadxConvert with this simple quality control applied.

Cell Task: Run QC on derecho case data.
Run the derecho case QC script:
!$LROSE_DIR/RadxConvert -sort_rays_by_time -const_ngates -params ./params/titan/RadxConvert.qc.derecho -debug -f ${DATA_DIR}/radar/raw/derecho/202205211*CASKR.h5
# Run QC on derecho case data
!$LROSE_DIR/RadxConvert -sort_rays_by_time -const_ngates -params ./params/titan/RadxConvert.qc.derecho -f ./radar/raw/derecho/OntarioDerecho2022/202205211*CASKR.h5
======================================================================
Program 'RadxConvert'
Run-time 2025/08/24 18:47:57.

Copyright (c) 1992 - 2025
University Corporation for Atmospheric Research (UCAR)
National Center for Atmospheric Research (NCAR)
Boulder, Colorado, USA.

Redistribution and use in source and binary forms, with
or without modification, are permitted provided that the following
conditions are met:

1) Redistributions of source code must retain the above copyright
notice, this list of conditions and the following disclaimer.

2) Redistributions in binary form must reproduce the above copyright
notice, this list of conditions and the following disclaimer in the
documentation and/or other materials provided with the distribution.

3) Neither the name of UCAR, NCAR nor the names of its contributors, if
any, may be used to endorse or promote products derived from this
software without specific prior written permission.

4) If the software is modified to produce derivative works, such modified
software should be clearly marked, so as not to confuse it with the
version available from UCAR.

======================================================================

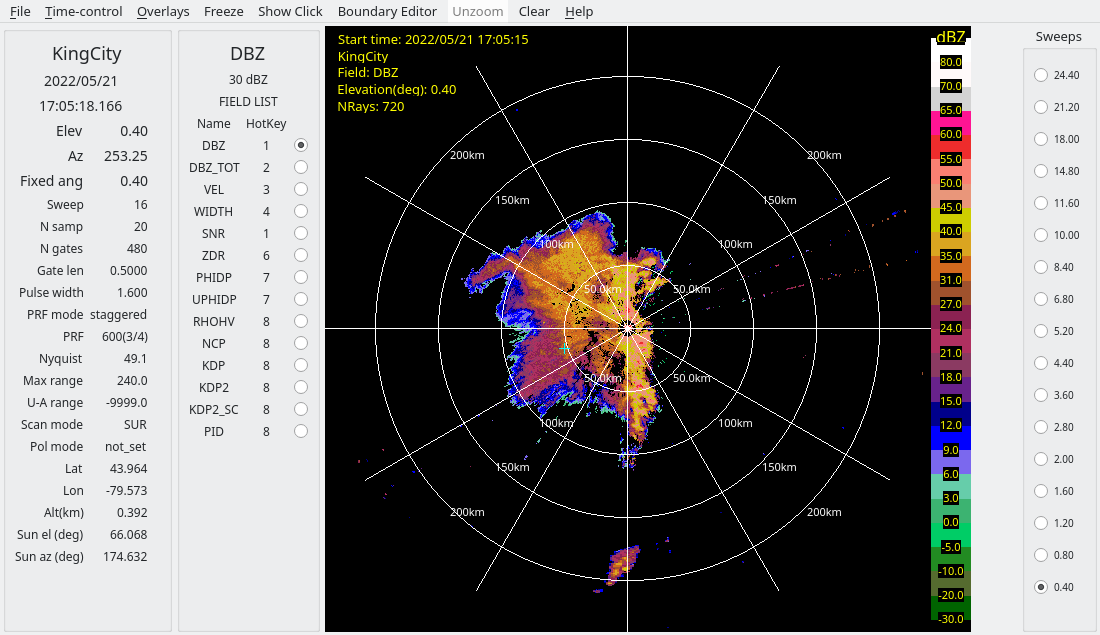

This simple QC removes some of the bad data, as shown by the screenshots below from the derecho case.

2.2: Option 2 - Computing PID as an alternative method of censoring using RadxPid

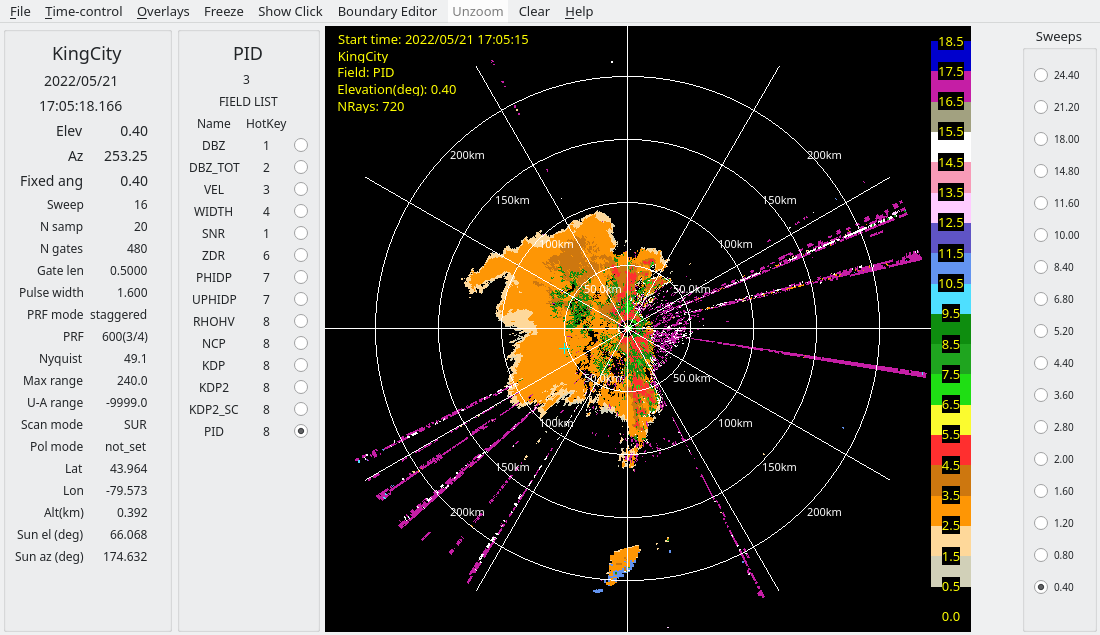

An alternative method for cleaning up interference is to run RadxPid, and censor non-meteorological echoes.

First, we have to download the ERA5 reanalysis for these cases, and we can use that to save the model-based soundings:

Cell Task: Run ERA5 sounding scripts.
Run the ERA5 sounding scripts:
!$LROSE_DIR/Mdv2SoundingSpdb -debug -params ./params/titan/Mdv2SoundingSpdb.ERA5.derecho -f $DATA_DIR/ERA5/20220521/20220521_*
# Get the ERA5 sounding for derecho case data
!$LROSE_DIR/Mdv2SoundingSpdb -debug -params ./params/titan/Mdv2SoundingSpdb.ERA5.derecho -f ./ERA5/20220521/20220521_*
======================================================================
Program 'Mdv2SoundingSpdb'
Run-time 2025/08/24 18:48:30.

Copyright (c) 1992 - 2025
University Corporation for Atmospheric Research (UCAR)
National Center for Atmospheric Research (NCAR)
Boulder, Colorado, USA.

Redistribution and use in source and binary forms, with
or without modification, are permitted provided that the following
conditions are met:

1) Redistributions of source code must retain the above copyright
notice, this list of conditions and the following disclaimer.

2) Redistributions in binary form must reproduce the above copyright
notice, this list of conditions and the following disclaimer in the
documentation and/or other materials provided with the distribution.

3) Neither the name of UCAR, NCAR nor the names of its contributors, if
any, may be used to endorse or promote products derived from this
software without specific prior written permission.

4) If the software is modified to produce derivative works, such modified
software should be clearly marked, so as not to confuse it with the
version available from UCAR.

======================================================================
Processing file: ./ERA5/20220521/20220521_150000.mdv.cf.nc
Mdvx::readVsection - reading file: ./ERA5/20220521/20220521_150000.mdv.cf.nc
SUCCESS - opened file: ./ERA5/20220521/20220521_150000.mdv.cf.nc
SUCCESS - setting master header
Default time dimension: time
  time: 2022/05/21 15:00:00
SUCCESS - setting time coord variable
Ncf2MdvTrans::_shouldAddField
  -->> rejecting field: time_bounds
Ncf2MdvTrans::_shouldAddField
  -->> rejecting field: time_bounds
Ncf2MdvTrans::_shouldAddField
  -->> rejecting field: DIV
Ncf2MdvTrans::_shouldAddField
  -->> rejecting field: DIV
Ncf2MdvTrans::_shouldAddField
  -->> rejecting field: SH
Ncf2MdvTrans::_shouldAddField
  -->> rejecting field: SH
Ncf2MdvTrans::_shouldAddField
  -->> adding field: RH
Ncf2MdvTrans::_shouldAddField
  Checking variable for field data: RH
SUCCESS - var has X coordinate, dim: x0
SUCCESS - var has Y coordinate, dim: y0
NOTE - var has Z coordinate, dim: z0
Ncf2MdvTrans::_addOneField
  -->> adding field: RH
Adding data field: RH
             time: 2022/05/21 15:00:00
Ncf2MdvTrans::_shouldAddField
  -->> adding field: TEMP
Ncf2MdvTrans::_shouldAddField
  Checking variable for field data: TEMP
SUCCESS - var has X coordinate, dim: x0
SUCCESS - var has Y coordinate, dim: y0
NOTE - var has Z coordinate, dim: z0
Ncf2MdvTrans::_addOneField
  -->> adding field: TEMP
Adding data field: TEMP
             time: 2022/05/21 15:00:00
Ncf2MdvTrans::_shouldAddField
  -->> adding field: U
Ncf2MdvTrans::_shouldAddField
  Checking variable for field data: U
SUCCESS - var has X coordinate, dim: x0
SUCCESS - var has Y coordinate, dim: y0
NOTE - var has Z coordinate, dim: z0
Ncf2MdvTrans::_addOneField
  -->> adding field: U
Adding data field: U
             time: 2022/05/21 15:00:00
Ncf2MdvTrans::_shouldAddField
  -->> adding field: V
Ncf2MdvTrans::_shouldAddField
  Checking variable for field data: V
SUCCESS - var has X coordinate, dim: x0
SUCCESS - var has Y coordinate, dim: y0
NOTE - var has Z coordinate, dim: z0
Ncf2MdvTrans::_addOneField
  -->> adding field: V
Adding data field: V
             time: 2022/05/21 15:00:00
Ncf2MdvTrans::_shouldAddField
  -->> adding field: W
Ncf2MdvTrans::_shouldAddField
  Checking variable for field data: W
SUCCESS - var has X coordinate, dim: x0
SUCCESS - var has Y coordinate, dim: y0
NOTE - var has Z coordinate, dim: z0
Ncf2MdvTrans::_addOneField
  -->> adding field: W
Adding data field: W
             time: 2022/05/21 15:00:00
Ncf2MdvTrans::_shouldAddField
  -->> rejecting field: Z
Ncf2MdvTrans::_shouldAddField
  -->> rejecting field: Z
Ncf2MdvTrans::_shouldAddField
  -->> adding field: height
Ncf2MdvTrans::_shouldAddField
  Checking variable for field data: height
SUCCESS - var has X coordinate, dim: x0
SUCCESS - var has Y coordinate, dim: y0
NOTE - var has Z coordinate, dim: z0
Ncf2MdvTrans::_addOneField
  -->> adding field: height
Adding data field: height
             time: 2022/05/21 15:00:00
Ncf2MdvTrans::_shouldAddField
  -->> adding field: pressure
Ncf2MdvTrans::_shouldAddField
  Checking variable for field data: pressure
SUCCESS - var has X coordinate, dim: x0
SUCCESS - var has Y coordinate, dim: y0
NOTE - var has Z coordinate, dim: z0
Ncf2MdvTrans::_addOneField
  -->> adding field: pressure
Adding data field: pressure
             time: 2022/05/21 15:00:00
Ncf2MdvTrans::addDataFieldsTime elapsed = 0
Ncf2MdvTrans::addGlobalAttrXmlChunk()
Wrote spdb data, URL: .//ERA5/spdb/KingCity
       Station name : KING
       Sounding time: 2022/05/21 15:00:00

And we can then run RadxPid:

Cell Task: Run PID on derecho case data.
Run the derecho case PID script:
!$LROSE_DIR/RadxPid -params ./params/titan/RadxPid.derecho -debug
# Run PID on derecho case data
!$LROSE_DIR/RadxPid -params ./params/titan/RadxPid.derecho -debug
Cannot stat file for parsing
pid_thresholds.sband.shv: No such file or directory
ERROR: RadxPid
Cannot read params file for NcarPid: pid_thresholds.sband.shv
Error: Could not create RadxPid object.

The following shows the PID field for the derecho case:

The interference is identified as clutter in this case.

And the following shows the raw data and after using PID to clean up the reflectivity field:

For this tutorial we will use the QC data created by RadxConvert.

2.3: Convert to Cartesian grid using Radx2Grid

Titan requires input data in Cartesian coordinates, rather than polar. To perform this transformation, we run the following to convert the data to Cartesian grid format.

Cell Task: Convert derecho case to Cartesian grid.
Run the derecho case grid conversion script:
!$LROSE_DIR/Radx2Grid -params ./params/titan/Radx2Grid.derecho -debug
# Convert derecho case to Cartesian grid
!$LROSE_DIR/Radx2Grid -params ./params/titan/Radx2Grid.derecho
======================================================================
Program 'Radx2Grid'
Run-time 2025/08/24 18:48:31.

Copyright (c) 1992 - 2025
University Corporation for Atmospheric Research (UCAR)
National Center for Atmospheric Research (NCAR)
Boulder, Colorado, USA.

Redistribution and use in source and binary forms, with
or without modification, are permitted provided that the following
conditions are met:

1) Redistributions of source code must retain the above copyright
notice, this list of conditions and the following disclaimer.

2) Redistributions in binary form must reproduce the above copyright
notice, this list of conditions and the following disclaimer in the
documentation and/or other materials provided with the distribution.

3) Neither the name of UCAR, NCAR nor the names of its contributors, if
any, may be used to endorse or promote products derived from this
software without specific prior written permission.

4) If the software is modified to produce derivative works, such modified
software should be clearly marked, so as not to confuse it with the
version available from UCAR.

======================================================================

3.1 Run Tobac

ds = xr.open_mfdataset(glob.glob("./radar/cart/qc/KingCity/20220521/*"))
ds
Loading...

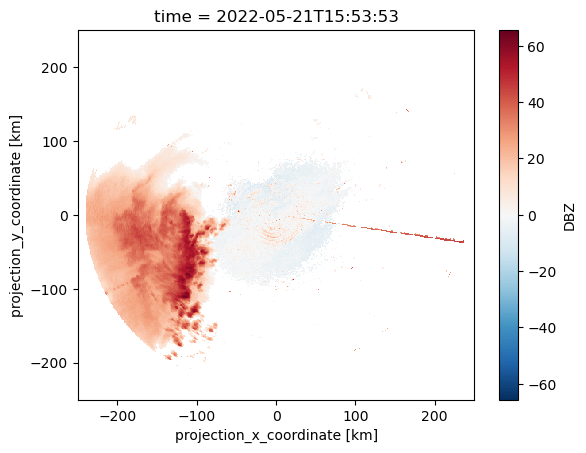

refl_max = ds.DBZ.max(dim=["z0"])
refl_max.isel(time=-1).plot()
<Figure size 640x480 with 2 Axes>
import tobac

#Defining the resolution of our data
dxy = 1_000
dt = 5*60

# Keyword arguments for feature detection step:
parameters_features={}
parameters_features['position_threshold']='weighted_diff'
parameters_features['sigma_threshold']=0.5
parameters_features['min_distance']=0
parameters_features['sigma_threshold']=1
parameters_features['threshold']=[30, 40, 50] #m/s
parameters_features['n_erosion_threshold']=0
parameters_features['n_min_threshold']=3

# Perform feature detection and save results:
print('start feature detection based on maximum vertical velocity')
Features=tobac.feature_detection_multithreshold(refl_max,dxy, vertical_cord='z0', **parameters_features)
print('feature detection performed start saving features')
#Features.to_hdf(savedir / 'Features.h5', 'table')
print('features saved')
Features
Loading...
# Keyword arguments for linking step:
parameters_linking={}
parameters_linking['method_linking']='predict'
parameters_linking['adaptive_stop']=0.5
parameters_linking['adaptive_step']=0.95
parameters_linking['extrapolate']=0
parameters_linking['order']=1
parameters_linking['subnetwork_size']=5
parameters_linking['memory']=0
parameters_linking['time_cell_min']=dt
parameters_linking['method_linking']='predict'
parameters_linking['v_max']=15

# Perform linking and save results:
Track=tobac.linking_trackpy(Features,refl_max,dt=dt,dxy=dxy,**parameters_linking)
#Track.to_hdf(savedir / 'Track.h5', 'table')
Track
Loading...
Track = Track[Track["cell"] != -1]

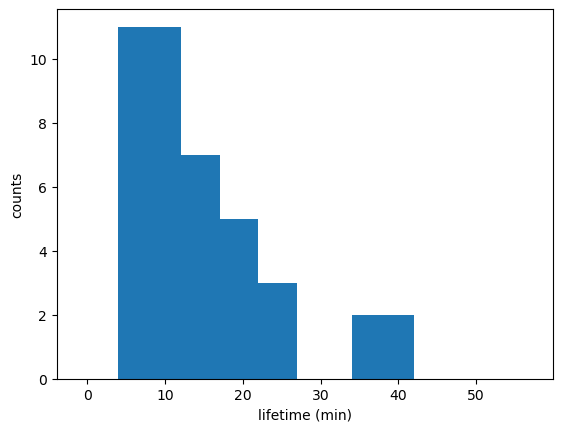

# Updraft lifetimes of tracked cells:
fig_lifetime,ax_lifetime=plt.subplots()
tobac.plot_lifetime_histogram_bar(Track,axes=ax_lifetime,bin_edges=np.arange(0,60,5),density=False,width_bar=8)
ax_lifetime.set_xlabel('lifetime (min)')
ax_lifetime.set_ylabel('counts')
<Figure size 640x480 with 1 Axes>
Track[Track.time_cell == Track.time_cell.max()]
Loading...
Track[Track.cell == 43]
Loading...

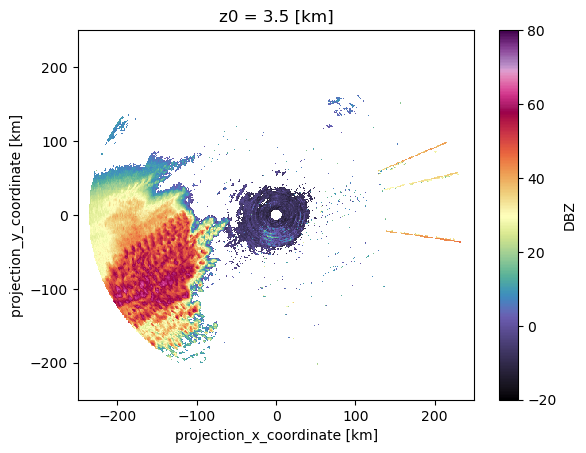

ds.DBZ.sel(z0=3, method='nearest').max(dim=["time"]).plot(vmin=-20,
                                                          vmax=80,
                                                          cmap='ChaseSpectral')
<Figure size 640x480 with 2 Axes>
ds.sel(time = ds.time[::2])
Loading...
fig = plt.figure(figsize=(12,8))
ax = plt.axes(projection=ccrs.PlateCarree())
ax.set_extent([-83, -80, 42, 44], crs=ccrs.PlateCarree())
ax.coastlines(resolution='10m')
ax.add_feature(cfeature.BORDERS, linestyle=':')
gl = ax.gridlines(draw_labels=True, dms=True, x_inline=False, y_inline=False)
gl.top_labels = False
gl.right_labels = False
gl.xlabel_style = {'size': 14}
gl.ylabel_style = {'size': 14}
ds.DBZ.sel(z0=3,
           method='nearest').max(dim=["time"]).plot(x='lon0',
                                                    y='lat0',
                                                    vmin=-20,
                                                    vmax=80,
                                                    cmap='ChaseSpectral',
                                                    ax=ax)

Track[Track.cell == 43].plot.scatter(x='lon0',
                                     y='lat0',
                                     ax=ax,
                                     s=50)

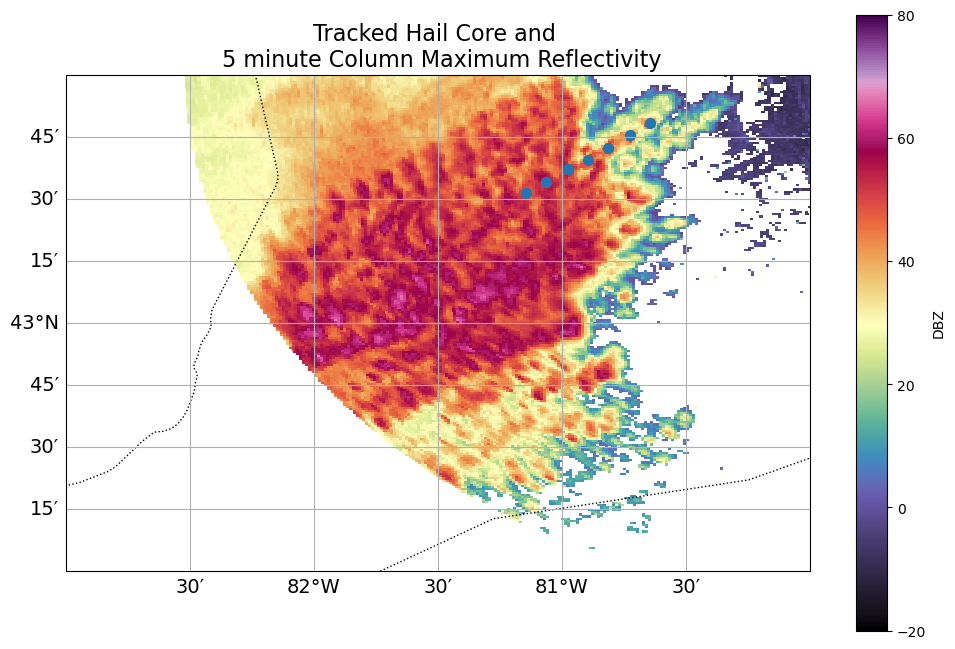

plt.title("Tracked Hail Core and \n 5 minute Column Maximum Reflectivity", fontsize=16);
<Figure size 1200x800 with 2 Axes>

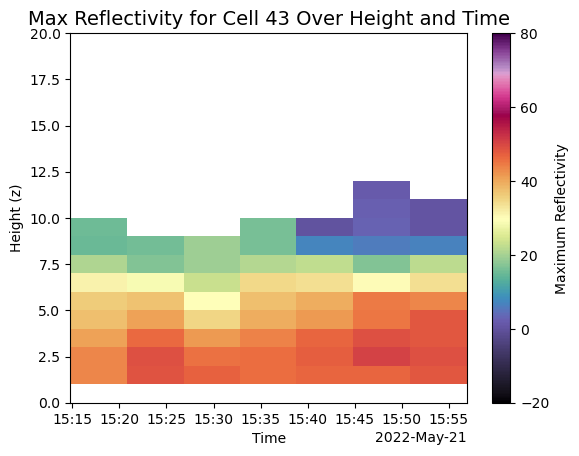

def subset_column(ds, time, x, y):
    return ds.sel(time=time, x0=x, y0=y, method='nearest')
cell_number = 43
# Filter for a single cell (cell 70)
single_cell = Track[Track.cell == cell_number]

# Subset data at each time step using x, y, and time
ds_list = []
for time in single_cell.time.values:
    row = single_cell.loc[single_cell.time == time]
    ds_list.append(subset_column(ds, time=row.time.values, x=row.x0.values, y=row.y0.values))

# Concatenate all time slices into a single dataset
single_cell_ds = xr.concat(ds_list, dim='time')

# Plot the max vertical wind component over time and height
plot = single_cell_ds.DBZ.max(["y0", "x0"]).plot(
    y='z0',
    vmin=-20,
    vmax=80,
    cmap='ChaseSpectral',
    cbar_kwargs={'label': 'Maximum Reflectivity'}  # custom colorbar label
)

# Add a custom title and axis labels
plt.title(f"Max Reflectivity for Cell {cell_number} Over Height and Time", fontsize=14)
plt.xlabel("Time")
plt.ylabel("Height (z)")

# Show plot
plt.show()
<Figure size 640x480 with 2 Axes>

3. Run TITAN storm tracking

Run the TITAN algorithm to identify and track storms.

Titan runs on the Cartesian gridded data, using the DBZ field and optionally the VEL field to compute storm rotation.

Cell Task: Run TITAN on derecho case data.
Run the derecho case TITAN script:
!$LROSE_DIR/Titan -params ./params/titan/Titan.derecho -start "2022 05 21 12 00 00" -end "2022 05 21 20 00 00" -debug
# Run TITAN on derecho case data
!$LROSE_DIR/Titan -params ./params/titan/Titan.derecho -start "2022 05 21 12 00 00" -end "2022 05 21 20 00 00"
======================================================================
Program 'Titan'
Run-time 2025/08/24 16:32:56.

Copyright (c) 1992 - 2025
University Corporation for Atmospheric Research (UCAR)
National Center for Atmospheric Research (NCAR)
Boulder, Colorado, USA.

Redistribution and use in source and binary forms, with
or without modification, are permitted provided that the following
conditions are met:

1) Redistributions of source code must retain the above copyright
notice, this list of conditions and the following disclaimer.

2) Redistributions in binary form must reproduce the above copyright
notice, this list of conditions and the following disclaimer in the
documentation and/or other materials provided with the distribution.

3) Neither the name of UCAR, NCAR nor the names of its contributors, if
any, may be used to endorse or promote products derived from this
software without specific prior written permission.

4) If the software is modified to produce derivative works, such modified
software should be clearly marked, so as not to confuse it with the
version available from UCAR.

======================================================================

4. Convert TITAN binary output to readable format

4.1 Convert TITAN binary output to ASCII format for analysis.

Cell Task: Convert derecho case TITAN output to ASCII.
Run the derecho case ASCII conversion script:
!$LROSE_DIR/Titan -params ./params/titan/Titan.derecho -start "2022 05 21 12 00 00" -end "2022 05 21 20 00 00" -debug
!$LROSE_DIR/Tracks2Ascii -params ./params/titan/Tracks2Ascii.derecho -f ./titan/storms/KingCity/20220521.th5 > ./data/titan/titan/ascii/Tracks2Ascii.derecho.txt
======================================================================
Program 'Tracks2Ascii'
Run-time 2025/08/24 16:33:00.

Copyright (c) 1992 - 2025
University Corporation for Atmospheric Research (UCAR)
National Center for Atmospheric Research (NCAR)
Boulder, Colorado, USA.

Redistribution and use in source and binary forms, with
or without modification, are permitted provided that the following
conditions are met:

1) Redistributions of source code must retain the above copyright
notice, this list of conditions and the following disclaimer.

2) Redistributions in binary form must reproduce the above copyright
notice, this list of conditions and the following disclaimer in the
documentation and/or other materials provided with the distribution.

3) Neither the name of UCAR, NCAR nor the names of its contributors, if
any, may be used to endorse or promote products derived from this
software without specific prior written permission.

4) If the software is modified to produce derivative works, such modified
software should be clearly marked, so as not to confuse it with the
version available from UCAR.

======================================================================
Processing track file ./titan/storms/KingCity/20220521.th5
# Convert derecho case TITAN output to ASCII
!$LROSE_DIR/Titan -params ./params/titan/Titan.derecho -start "2022 05 21 12 00 00" -end "2022 05 21 20 00 00"
======================================================================
Program 'Titan'
Run-time 2025/08/24 16:33:01.

Copyright (c) 1992 - 2025
University Corporation for Atmospheric Research (UCAR)
National Center for Atmospheric Research (NCAR)
Boulder, Colorado, USA.

Redistribution and use in source and binary forms, with
or without modification, are permitted provided that the following
conditions are met:

1) Redistributions of source code must retain the above copyright
notice, this list of conditions and the following disclaimer.

2) Redistributions in binary form must reproduce the above copyright
notice, this list of conditions and the following disclaimer in the
documentation and/or other materials provided with the distribution.

3) Neither the name of UCAR, NCAR nor the names of its contributors, if
any, may be used to endorse or promote products derived from this
software without specific prior written permission.

4) If the software is modified to produce derivative works, such modified
software should be clearly marked, so as not to confuse it with the
version available from UCAR.

======================================================================

4.2: Convert TITAN output to NetCDF format

Convert TITAN binary output to NetCDF format for further analysis.

Cell Task: Convert derecho case TITAN output to NetCDF.
Run the derecho case NetCDF conversion script:
!$LROSE_DIR/Tstorms2NetCDF -params ./params/titan/Tstorms2NetCDF.derecho -debug -f $DATA_DIR/titan/storms/KingCity/20220521.sh5
# Convert derecho case TITAN output to NetCDF
!$LROSE_DIR/Tstorms2NetCDF -params ./params/titan/Tstorms2NetCDF.derecho -f $DATA_DIR/titan/storms/KingCity/20220521.sh5
======================================================================
Program 'Tstorms2NetCDF'
Run-time 2025/08/24 16:33:06.

Copyright (c) 1992 - 2025
University Corporation for Atmospheric Research (UCAR)
National Center for Atmospheric Research (NCAR)
Boulder, Colorado, USA.

Redistribution and use in source and binary forms, with
or without modification, are permitted provided that the following
conditions are met:

1) Redistributions of source code must retain the above copyright
notice, this list of conditions and the following disclaimer.

2) Redistributions in binary form must reproduce the above copyright
notice, this list of conditions and the following disclaimer in the
documentation and/or other materials provided with the distribution.

3) Neither the name of UCAR, NCAR nor the names of its contributors, if
any, may be used to endorse or promote products derived from this
software without specific prior written permission.

4) If the software is modified to produce derivative works, such modified
software should be clearly marked, so as not to confuse it with the
version available from UCAR.

======================================================================

5. Plot Output

We’ll load the necessary Python packages and plot some of the TITAN output now.

# Import Python packages
import pandas as pd
from datetime import datetime
import numpy as np
import matplotlib.pyplot as plt
import seaborn as sns
import matplotlib.dates as mdates
import cartopy.crs as ccrs
import cartopy.feature as cfeature
from shapely.geometry import Polygon
file = "./data/titan/titan/ascii/Tracks2Ascii.derecho.txt"

Open text file and adjust columns names in order to import to a pandas dataframe. Since the text file has irregular delimiters, we need to add some extra steps.

#open file and extract column names
f = open(file)
lines = f.readlines()
f.close()

label_line_index = None

for i, line in enumerate(lines):
    if 'labels' in line:
        label_line_index = i
        break
labels = lines[label_line_index].split(":", 1)[1].strip().split(",")
#the data lines are the ones that do not start with #
data_lines = [line.strip() for line in lines if not line.startswith("#")]

The file last three rows are labeled “parents”,“children”,"nPolySidesPolygonRays72". Parents and children columns refer to identifiers based on merging and splitting processes. The Polygon column shows the values for the lines from the polygon centroid to each vertex, in km. There are 72 values because each line is separated 5 deg (725 =360). With that information and the “envelope_centroid” column, we can retrieve the cells envelopes at each timestep.

rows = []
for line in data_lines:
    parts = line.split()

    try:
        # Try parsing the polygon count value (always right before 72 values)
        poly_count_index = -73  # 72 floats + 1 count (the column starts with the numnber 72, which is not part of the values)

        # Parents and children may be missing
        parent_str = parts[poly_count_index - 2]
        child_str = parts[poly_count_index - 1]

        # Handle missing values marked as "-"
        parents = int(parent_str) if parent_str != '-' else np.nan
        children = int(child_str) if child_str != '-' else np.nan

        # Polygon values: skip the count, get the next 72 values
        polygon_values = list(map(float, parts[poly_count_index + 1:]))

        # Fixed columns
        fixed_cols = parts[:poly_count_index - 2]

        # Combine into one row
        row = fixed_cols + [parents, children, polygon_values]
        rows.append(row)
    except Exception as e:
        continue
# Final columns: fixed + 3 custom ones
final_labels = labels[:len(rows[0]) - 3] + ['parents', 'children', 'nPolySidesPolygonRays']

# Create DataFrame
df = pd.DataFrame(rows, columns=final_labels)

# Convert date and time columns to datetime
df['date_utc'] = pd.to_datetime(
    df['Year'].astype(str) + '-' +
    df['Month'].astype(str).str.zfill(2) + '-' +
    df['Day'].astype(str).str.zfill(2) + ' ' +
    df['Hour'].astype(str).str.zfill(2) + ':' +
    df['Min'].astype(str).str.zfill(2) + ':' +
    df['Sec'].astype(str).str.zfill(2),
    format='%Y-%m-%d %H:%M:%S',
    utc=True
)
# Print df
print(df)
   NSimpleTracks ComplexNum SimpleNum  Year Month Day Hour Min Sec  \
0             30          0         0  2022    05  21   14  59  49
1             30          0         1  2022    05  21   14  59  49
2             30          0         1  2022    05  21   15  05  50
3             30          0         2  2022    05  21   14  59  49
4             30          0         3  2022    05  21   14  59  49
..           ...        ...       ...   ...   ...  ..  ...  ..  ..
69             1         47        47  2022    05  21   15  47  48
70             1         47        47  2022    05  21   15  53  53
71             1         55        55  2022    05  21   15  41  49
72             1         55        55  2022    05  21   15  47  48
73             1         55        55  2022    05  21   15  53  53

   dBZThreshold  ... HailFOKRCat0-4 HailWaldvogelProb HailMassAloft(ktons)  \
0            35  ...              4                 1              134.097
1            35  ...              0                 0                    0
2            35  ...              3               0.8             0.939272
3            35  ...              0                 0                    0
4            35  ...              2               0.6             0.379067
..          ...  ...            ...               ...                  ...
69           35  ...              2                 0                    0
70           35  ...              0                 0                    0
71           35  ...              0                 0                    0
72           35  ...              0                 0                    0
73           35  ...              0                 0                    0

   HailVihm(kg/m2) ReflCentroidRange(km) ReflCentroidAzimuth(deg) parents  \
0          4.80436               220.577                 -114.922     NaN
1                0               236.347                 -125.801     NaN
2          0.77276               228.368                  -125.88     NaN
3                0               227.531                 -123.188     NaN
4         0.481507               207.533                 -118.211     NaN
..             ...                   ...                      ...     ...
69        0.138608                187.84                 -145.078     NaN
70               0                183.49                 -146.145     NaN
71               0               207.124                  -115.29     NaN
72               0               201.847                 -116.488     NaN
73               0               188.001                 -115.214     NaN

   children                              nPolySidesPolygonRays  \
0       5.0  [50.6, 58.8, 52.3, 53.4, 51.9, 44.7, 29.5, 25....
1      12.0  [3.0, 3.0, 3.0, 3.1, 3.2, 3.3, 3.5, 3.0, 2.7, ...
2      12.0  [4.6, 4.6, 4.7, 4.8, 4.9, 5.1, 4.4, 3.8, 3.4, ...
3       5.0  [2.7, 2.7, 2.7, 2.2, 1.8, 1.8, 1.9, 2.0, 2.2, ...
4       5.0  [4.6, 4.6, 4.6, 4.7, 4.9, 4.7, 4.1, 8.0, 7.8, ...
..      ...                                                ...
69      NaN  [3.9, 4.0, 4.0, 4.1, 4.2, 3.6, 3.1, 2.7, 2.4, ...
70      NaN  [5.5, 5.5, 4.6, 4.7, 4.8, 4.1, 3.4, 3.0, 2.7, ...
71      NaN  [2.6, 2.6, 2.6, 3.7, 3.8, 3.9, 3.9, 3.4, 3.4, ...
72      NaN  [2.7, 12.8, 16.0, 18.4, 17.8, 17.4, 16.5, 16.1...
73      NaN  [10.6, 12.7, 14.8, 16.2, 15.5, 17.2, 19.5, 18....

                    date_utc
0  2022-05-21 14:59:49+00:00
1  2022-05-21 14:59:49+00:00
2  2022-05-21 15:05:50+00:00
3  2022-05-21 14:59:49+00:00
4  2022-05-21 14:59:49+00:00
..                       ...
69 2022-05-21 15:47:48+00:00
70 2022-05-21 15:53:53+00:00
71 2022-05-21 15:41:49+00:00
72 2022-05-21 15:47:48+00:00
73 2022-05-21 15:53:53+00:00

[74 rows x 80 columns]

Let’s explore the TITAN output now!

How does TITAN work?

TITAN identifies individual radar cells within every radar volume , based on reflectivity and volume thresholds. Then, it tracks them through time using a combination and optimization scheme, and geometric logic to address splitting and merging storms. In this example, we have set the minimum reflectivity threshold to 35 dBZ. This is shown in column ‘dBZThreshold’. That threshold defines the minimum reflectivity for our ‘cell’ entity.

What is the TITAN output?

TITAN outputs cell fetures at each tracking timestep, and identifies cells within major systems, based on their interaction with neighboring cells. Therefore, each cell will have a simple and a complex identifier (“SimpleNum” and “ComplexNum”) in the TITAN output text file. For example, if we are tracking a multicell system, all the individual cells tracked within the major system will have different “SimplNum” identifiers, however, they will al have the same “ComplexNum” identifier (the main multicell system).

Let’s inspect our derecho case now! How many Complexes we can identify? Which one contains more tracks (e.g., single cell tracks, and split/merge processes)?

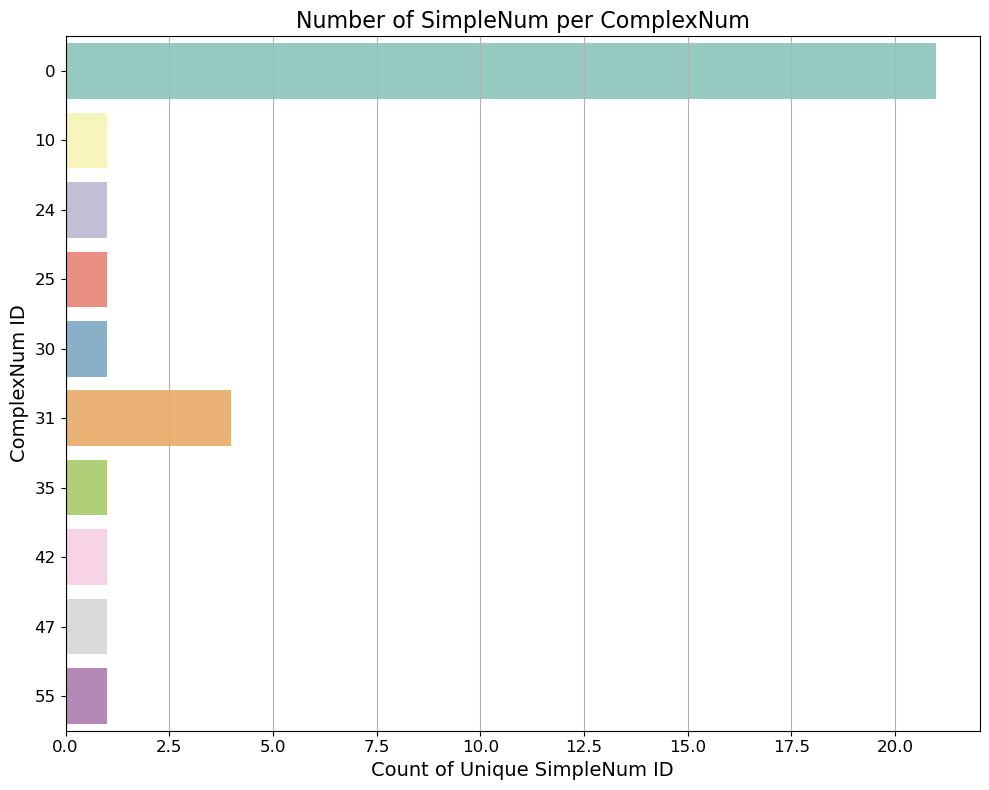

# Count number of unique SimpleNum per ComplexNum
simple_counts = df.groupby('ComplexNum')['SimpleNum'].nunique().reset_index(name='NumSimple')

# Sort (optional, for better visuals)
#simple_counts = simple_counts.sort_values(by='NumSimple', ascending=False)

# Plot 1
plt.figure(figsize=(10, 8))
sns.barplot(y='ComplexNum', x='NumSimple', data=simple_counts, palette='Set3')
plt.title('Number of SimpleNum per ComplexNum', fontsize=16)
plt.xlabel('Count of Unique SimpleNum ID', fontsize=14)
plt.ylabel('ComplexNum ID', fontsize=14)
plt.xticks(fontsize=12)
plt.yticks(fontsize=12)
plt.tight_layout()
plt.grid(axis='x')
plt.show()
<Figure size 1000x800 with 1 Axes>
#  Filter dataframe for ComplexNum == 0 and sort by time
df0 = df[df['ComplexNum'] == "0"].copy()
df0 = df0.sort_values('date_utc')
df0['MaxDBZ(dBZ)'] = pd.to_numeric(df0['MaxDBZ(dBZ)'], errors='coerce')
df0['date_utc'] = pd.to_datetime(df0['date_utc'], errors='coerce', utc=True)

#  Plot
y_min = 30
y_max = 70
y_ticks = np.arange(y_min, y_max + 1, 5)

plt.figure(figsize=(12, 6))
sns.set_style("whitegrid")
sns.lineplot(data=df0, x='date_utc', y='MaxDBZ(dBZ)', hue='SimpleNum', palette='gist_ncar')
plt.ylim(y_min, y_max)
plt.yticks(y_ticks,fontsize=12)
plt.gca().xaxis.set_major_formatter(mdates.DateFormatter('%H:%M'))
plt.xticks(fontsize=12)
plt.title('MaxDBZ over Time for ComplexNum = 0', fontsize=16)
plt.xlabel('Time (UTC)', fontsize=14)
plt.ylabel('MaxDBZ (dBZ)',fontsize=14)
# Remove legend
plt.legend([], [], frameon=False)
plt.tight_layout()
plt.show()
<Figure size 1200x600 with 1 Axes>

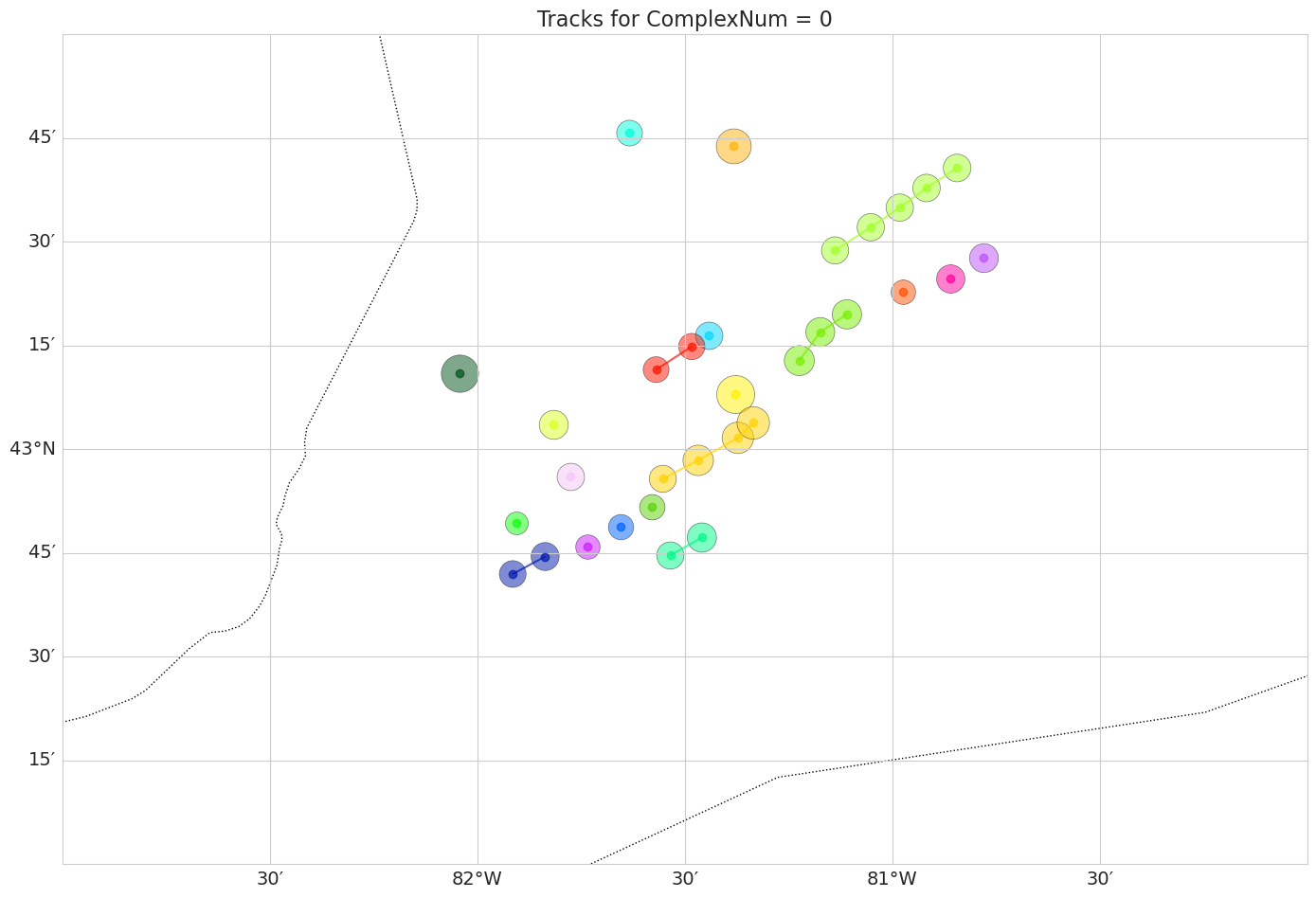

Now we can also plot the centroids of each tracked cell, in a Cartopy map, and add circles around the centroid based on how big the cell volume is in each timestep. We will also show the different cells (‘SimpleNum’) in different colors.

df0 = df0.sort_values(['SimpleNum', 'date_utc'])
# Convert lat/lon columns to numeric, coercing errors to NaN
df0['VolCentroidLat(deg)'] = pd.to_numeric(df0['VolCentroidLat(deg)'], errors='coerce')
df0['VolCentroidLon(deg)'] = pd.to_numeric(df0['VolCentroidLon(deg)'], errors='coerce')

# Set up map plot
plt.figure(figsize=(14, 10))
ax = plt.axes(projection=ccrs.PlateCarree())
ax.set_extent([-83, -80, 42, 44], crs=ccrs.PlateCarree())
ax.coastlines(resolution='10m')
ax.add_feature(cfeature.BORDERS, linestyle=':')
gl = ax.gridlines(draw_labels=True, dms=True, x_inline=False, y_inline=False)
gl.top_labels = False
gl.right_labels = False
gl.xlabel_style = {'size': 14}
gl.ylabel_style = {'size': 14}

# Unique SimpleNum and colors
simple_nums = df0['SimpleNum'].unique()
palette = sns.color_palette("gist_ncar", n_colors=len(simple_nums))
df0['Volume(km3)'] = pd.to_numeric(df0['Volume(km3)'], errors='coerce').fillna(0)

# We normalize the Volume for the marker sizes
for i, simple_num in enumerate(simple_nums):
    track = df0[df0['SimpleNum'] == simple_num].copy()

    lat = track['VolCentroidLat(deg)']
    lon = track['VolCentroidLon(deg)']
    vol = pd.to_numeric(track['Volume(km3)'], errors='coerce').fillna(0)

    # Scale volume: use log scale to compress range + clip to reasonable range
    sizes = np.log10(vol + 1) * 200  # +1 to avoid log(0)
    #sizes = sizes.clip(10, 300)

    ax.plot(lon, lat, marker='o', linestyle='-', color=palette[i], alpha=0.7, transform=ccrs.PlateCarree())
    ax.scatter(lon, lat, s=sizes, color=palette[i], alpha=0.5, transform=ccrs.PlateCarree(), edgecolor='k', linewidth=0.5)

#plt.legend(title='SimpleNum', bbox_to_anchor=(1.05, 1), loc='upper left')
plt.yticks(fontsize=12)
plt.xticks(fontsize=12)
plt.title('Tracks for ComplexNum = 0', fontsize= 16)
plt.tight_layout()
plt.show()
<Figure size 1400x1000 with 1 Axes>
fig, ax = plt.subplots(figsize=(12, 12),
                       subplot_kw={'projection': ccrs.PlateCarree()})

# Set the map extent (lon_min, lon_max, lat_min, lat_max)
ax.set_extent([-83, -80, 42, 44], crs=ccrs.PlateCarree())
ax.coastlines()

#color by time
timesteps = df0['date_utc'].unique()
palette = sns.color_palette("gist_ncar", n_colors=len(timesteps))
gl = ax.gridlines(draw_labels=True, dms=True, x_inline=False, y_inline=False)
gl.top_labels = False
gl.right_labels = False
gl.xlabel_style = {'size': 14}
gl.ylabel_style = {'size': 14}

for idx, row in df0.iterrows():
    lat_centroid = float(row['EnvelopeCentroidLat(deg)'])
    lon_centroid = float(row['EnvelopeCentroidLon(deg)'])
    rays = row['nPolySidesPolygonRays']

    if not rays or len(rays) == 0:
        continue

    angles = np.deg2rad(np.arange(0, 360, 5))  # 72 vertices at every 5 degrees
    rays = np.array(rays, dtype=float) #from centroid to vertex

    # Rays in km to degrees
    ray_x = rays * np.cos(angles)
    ray_y = rays * np.sin(angles)

    # Approximate conversion from km to degrees lat/lon
    lat_vertices = lat_centroid + ray_y / 111
    lon_vertices = lon_centroid + ray_x / (111 * np.cos(np.deg2rad(lat_centroid)))

    polygon_points = list(zip(lon_vertices, lat_vertices))

    poly = Polygon(polygon_points)
    time_idx = np.where(timesteps == row['date_utc'])[0][0]

    ax.add_geometries([poly], crs=ccrs.PlateCarree(),
                      edgecolor=palette[time_idx], facecolor='none', linewidth=1)

    ax.plot(lon_centroid, lat_centroid, marker='o',color='grey', markersize=1.5, transform=ccrs.PlateCarree())

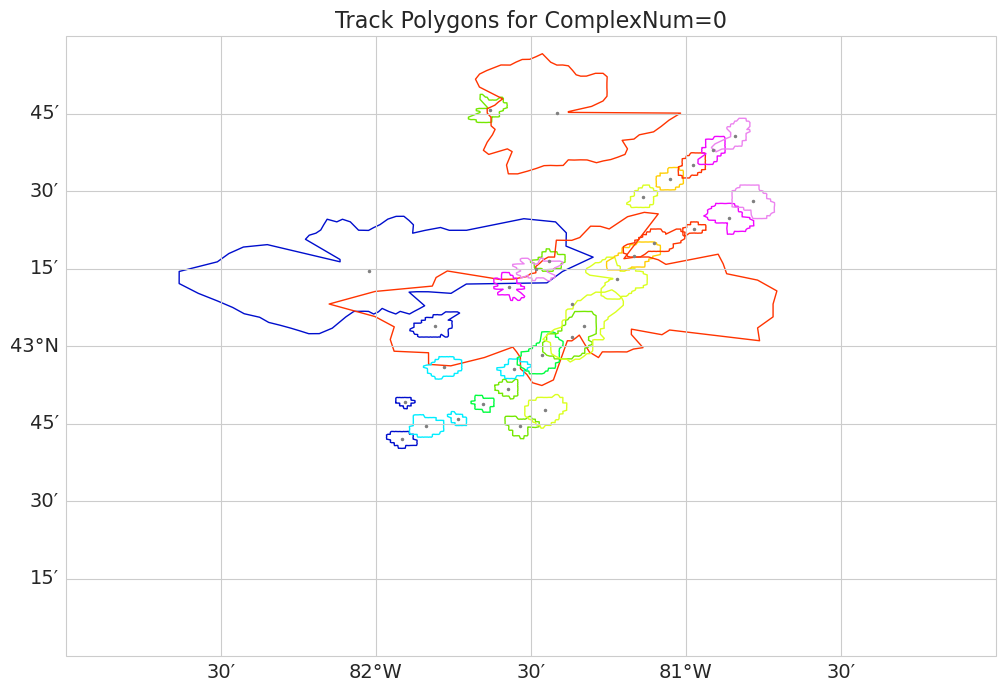

plt.title("Track Polygons for ComplexNum=0", fontsize=16)
plt.show()
<Figure size 1200x1200 with 1 Axes>

Afternoon Project

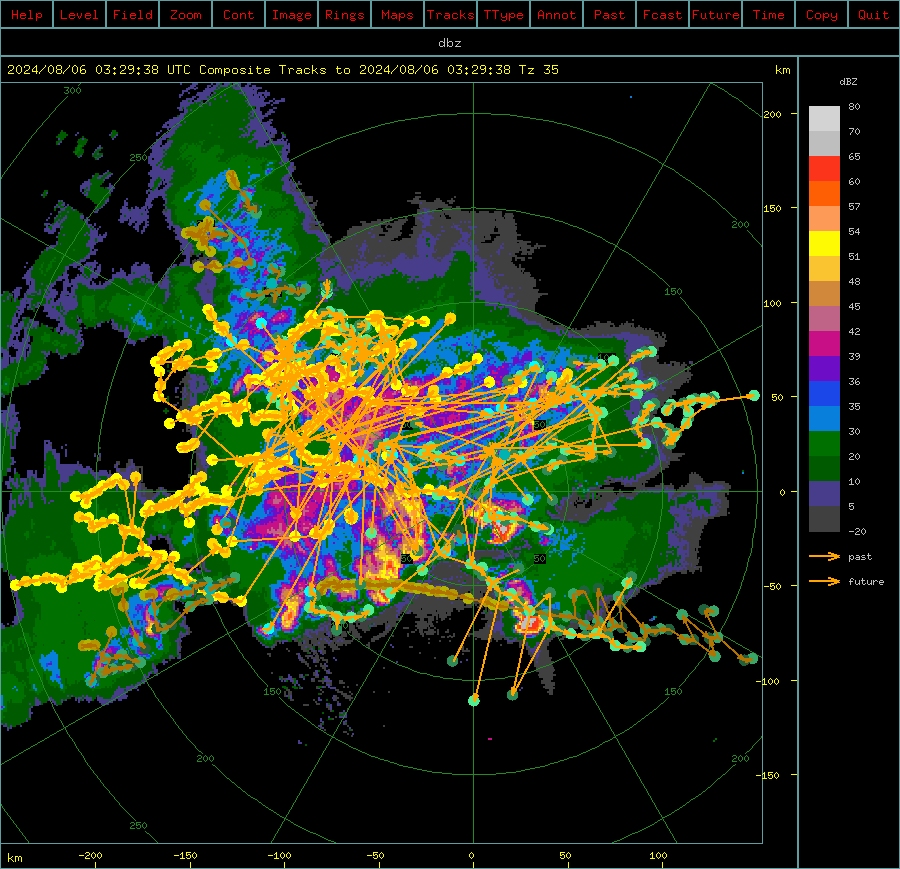

To run TITAN on the hail case, the previous commands just need to be recreated using the hail parameter files. We’ve summarized the commands below.

  1. Convert the data. ! LROSE_DIR/RadxConvert -sort_rays_by_time -const_ngates -params ./params/titan/RadxConvert.qc.hail -debug -f {DATA_DIR}/radar/raw/hail/202408060*h5

  2. Prepare the sounding data. ! LROSE_DIR/Mdv2SoundingSpdb -debug -params ./params/titan/Mdv2SoundingSpdb.ERA5.hail -f DATA_DIR/ERA5/20240806/20240806_0*

  3. Run the PID. !$LROSE_DIR/RadxPid -params ./params/titan/RadxPid.hail -debug

  4. Grid the data on a Cartesian grid. !$LROSE_DIR/Radx2Grid -params ./params/titan/Radx2Grid.hail -debug

  5. Run TITAN. !$LROSE_DIR/Titan -params ./params/titan/Titan.hail -start “2024 08 06 00 00 00” -end “2024 08 06 06 00 00” -debug

  6. Convert the tracks to an ASCII file. ! LROSE_DIR/Tracks2Ascii -params ./params/titan/Tracks2Ascii.hail -f ~/data/ams2025/titan/storms/Strathmore/20240806.th5 > DATA_DIR/titan/ascii/Tracks2Ascii.hail.txt

  7. Convert the output to NetCDF. ! LROSE_DIR/Tstorms2NetCDF -params ./params/titan/Tstorms2NetCDF.hail -debug -f DATA_DIR/titan/storms/Strathmore/20240806.sh5

Play with the reflectivity or minimum area thresholds

File Task: modify parameters in text files.

If you’re curious how the parameter choices affect the analysis, feel free to play around with different values of the reflectivity and minimum area thresholds.

These are in the ./params/titan/Titan.hail and ./params/titan/Titan.derecho parameter files, which you can edit directly in JupyterLab.

References
  1. Dixon, M., & Wiener, G. (1993). TITAN: Thunderstorm Identification, Tracking, Analysis, and Nowcasting—A Radar-based Methodology. Journal of Atmospheric and Oceanic Technology, 10(6), 785–797. https://doi.org/10.1175/1520-0426(1993)010<;0785:ttitaa>2.0.co;2
