Inspect Single Pol Data - Fruŝka Gora¶

Fruŝka Gora radar is located in a small low mountain range of the same name Fruška_Gora on the right bank of the Danube, south of Novi Sad.

import numpy as np
import wradlib as wrl
import matplotlib.pyplot as plt
import xarray as xr
import xradar as xd
import fsspec
import icechunk
import holoviews as hv
import hvplot
import hvplot.xarray

Claim Data¶

We use the ARCO data provided in Data Access — Serbian Rainbow Radar. Please refer to this notebook for details of access.

OSN_ENDPOINT = "https://umn1.osn.mghpcc.org"
BUCKET = "nexrad-arco"

prefix = "Fgora"  # single-pol, 12 sweeps × 360 az × 250 range, 2014 + 2017 + 2026

storage = icechunk.s3_storage(
    bucket=BUCKET,
    prefix=prefix,
    endpoint_url=OSN_ENDPOINT,
    region="us-east-1",
    anonymous=True,
    force_path_style=True,
)
repo = icechunk.Repository.open(storage)
dtree = xr.open_datatree(
    repo.readonly_session("main").store,
    engine="zarr",
    consolidated=False,
    chunks={},
)
display(dtree)
root = next(iter(dtree.keys())).split("/")[0]

Radar domain¶

Get lowest elevation sweep¶

First we get the lowest sweep and do some georeferencing.

swp = (
    dtree[f"{root}/sweep_0"]
    .to_dataset()
    .assign_coords(dtree[root].coords)
    .assign_coords(sweep_mode="azimuth_surveillance")
    .wrl.georef.georeference(crs=wrl.georef.get_earth_projection())
)
swp.x.attrs = xd.model.get_longitude_attrs()
swp.y.attrs = xd.model.get_latitude_attrs()
swp.z.attrs = xd.model.get_altitude_attrs()
display(swp)

Plot over Maptiles¶

Use the bokeh infrastructure to interact with the plot.

import holoviews as hv
import geopandas as gpd
from shapely.geometry import Point
import hvplot.pandas

lon, lat = swp.longitude.values, swp.latitude.values

radar = gpd.GeoDataFrame(
    geometry=[
        Point(lon, lat),
    ],
    crs="EPSG:4326",
)

lon_domain = swp.isel(range=-1).x.values
lat_domain = swp.isel(range=-1).y.values
ring = gpd.GeoDataFrame(
    geometry=[Point(xy) for xy in zip(lon_domain, lat_domain)],
    crs="EPSG:4326"
)

tiles = hv.element.tiles.OpenTopoMap()

points = radar.hvplot.points(
    x="lon",
    y="lat",
    marker="o",
    geo=True,
    s=100,
    c="red",
    tiles=tiles,
)

domain = ring.hvplot(
    geo=True,
    line_width=2,
    color="blue",
)

(points * domain).opts(
    frame_width=600,
    # height=600,
)

Scan pattern¶

To visualize the scan pattern we just select a single volume.

svol = dtree[root].isel(vcp_time=0)
display(svol)
for c, v in svol.coords.items():
    print(c, v.values)
for c in sorted(svol.children, key=lambda x: int(x.split("_")[-1])):
    print(c, svol[c].time.isel(azimuth=0).values)

altitude 530.0
latitude 45.156844
prt_mode not_set
follow_mode not_set
longitude 19.815733
sweep_mode azimuth_surveillance
vcp_time 2014-05-15T00:01:20.000000000
sweep_0 2014-05-15T00:01:29.812500000
sweep_1 2014-05-15T00:01:44.520833536
sweep_2 2014-05-15T00:02:00.062500096
sweep_3 2014-05-15T00:02:14.312500000

sweep_4 2014-05-15T00:02:44.562500096
sweep_5 2014-05-15T00:02:59.562500096
sweep_6 2014-05-15T00:03:14.479166500
sweep_7 2014-05-15T00:03:29.604166400
sweep_8 2014-05-15T00:03:45.520833536

sweep_9 2014-05-15T00:04:15.229166500
sweep_10 2014-05-15T00:04:30.062500000
sweep_11 2014-05-15T00:04:45.604166400

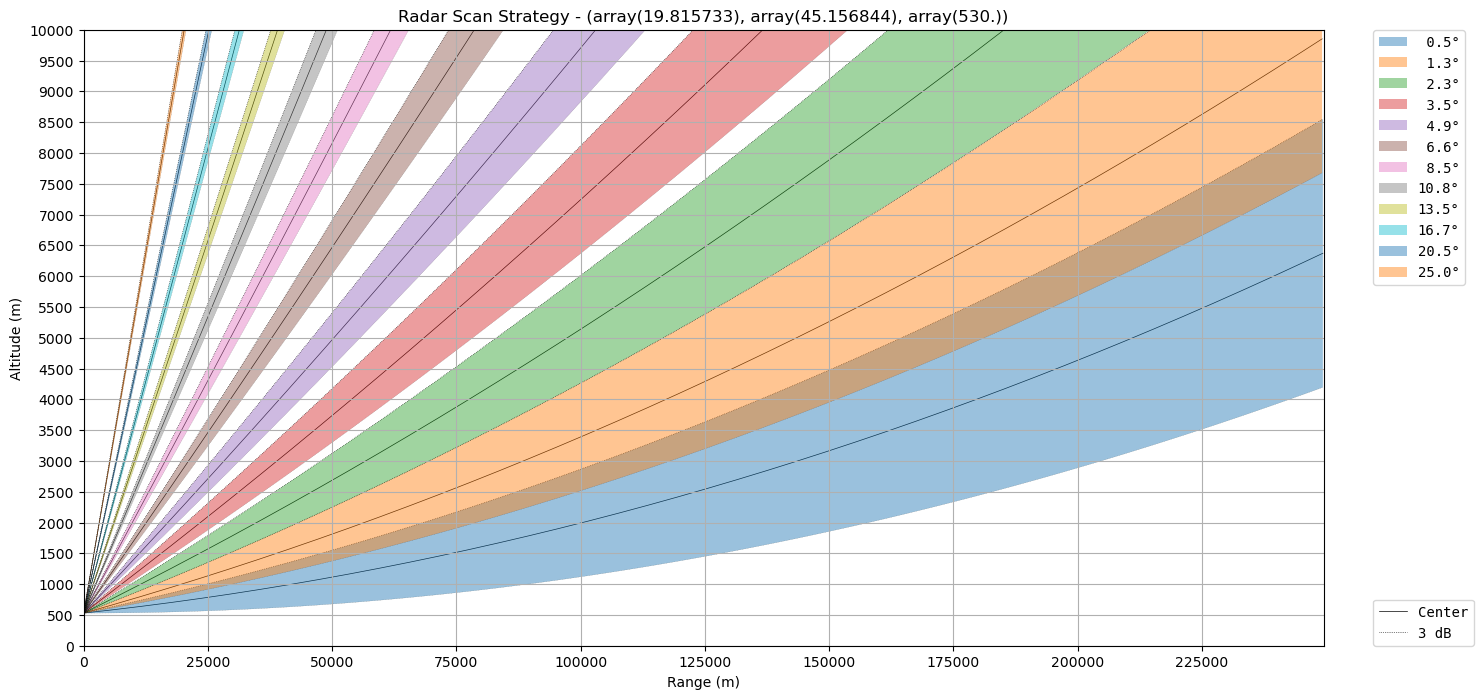

ax = svol.wrl.vis.plot_scan_strategy()

Overview Plot¶

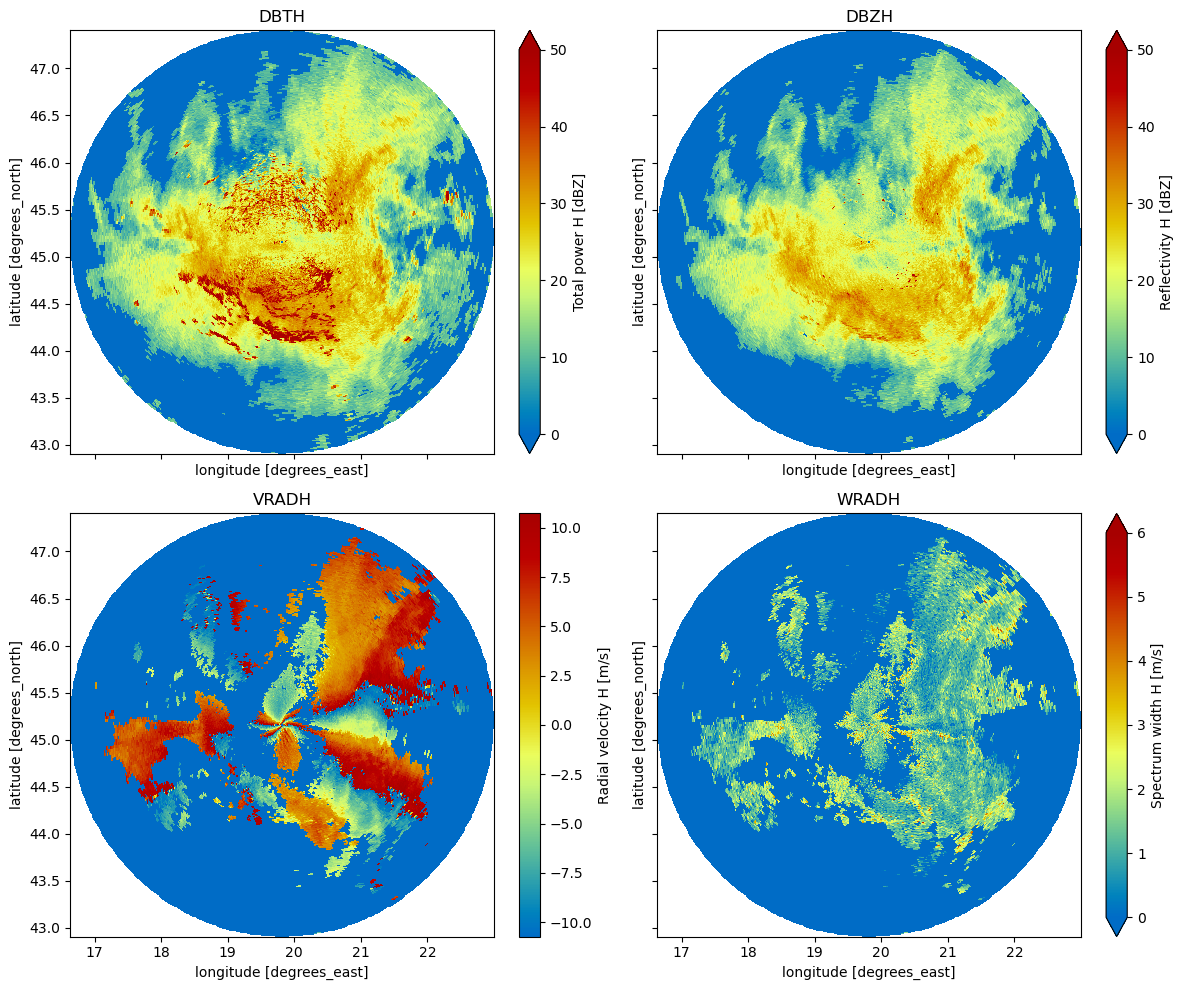

Select a time slot and plot four radar moments!

fig, ((ax1, ax2), (ax3, ax4)) = plt.subplots(2, 2, sharex=True, sharey=True, figsize=(12, 10))
dbz_min, dbz_max = (0, 50)

swp_sel = swp.sel(vcp_time="2014-05-15T00:01:50", method="nearest")

swp_sel.DBTH.wrl.vis.plot(ax=ax1, vmin=dbz_min, vmax=dbz_max)
ax1.set_title("DBTH")
swp_sel.DBZH.wrl.vis.plot(ax=ax2, vmin=dbz_min, vmax=dbz_max)
ax2.set_title("DBZH")
swp_sel.VRADH.wrl.vis.plot(ax=ax3)
ax3.set_title("VRADH")
swp_sel.WRADH.wrl.vis.plot(ax=ax4, vmin=0, vmax=6)
ax4.set_title("WRADH")

fig.tight_layout()

hv.extension('bokeh')
hv.output(widget_location="bottom")

swpx = swp.chunk()

dbz_opts = dict(
    cmap="HomeyerRainbow",
    clim=(0, 60),
    aspect=1
)

vrad_opts = dict(
    cmap="Seismic",
    clim=(-15, 15),
    aspect=1
)

wrad_opts = dict(
    cmap="Seismic",
    clim=(0, 15),
    aspect=1
)


dbth = (
    swpx.hvplot.quadmesh(groupby="vcp_time", x="x", y="y", z="DBTH", frame_width=250, rasterize=True)
).opts(axiswise=False, xaxis=None, **dbz_opts)

dbzh = (
    swpx.hvplot.quadmesh(groupby="vcp_time", x="x", y="y", z="DBZH", frame_width=250, rasterize=True)
).opts(axiswise=False, xaxis=None, yaxis=None, **dbz_opts)

vradh = (
    swpx.hvplot.quadmesh(groupby="vcp_time", x="x", y="y", z="VRADH", frame_width=250, rasterize=True)
).opts(axiswise=False, **vrad_opts)

wradh = (
    swpx.hvplot.quadmesh(groupby="vcp_time", x="x", y="y", z="WRADH", frame_width=250, rasterize=True)
).opts(axiswise=False, yaxis=None, **vrad_opts)

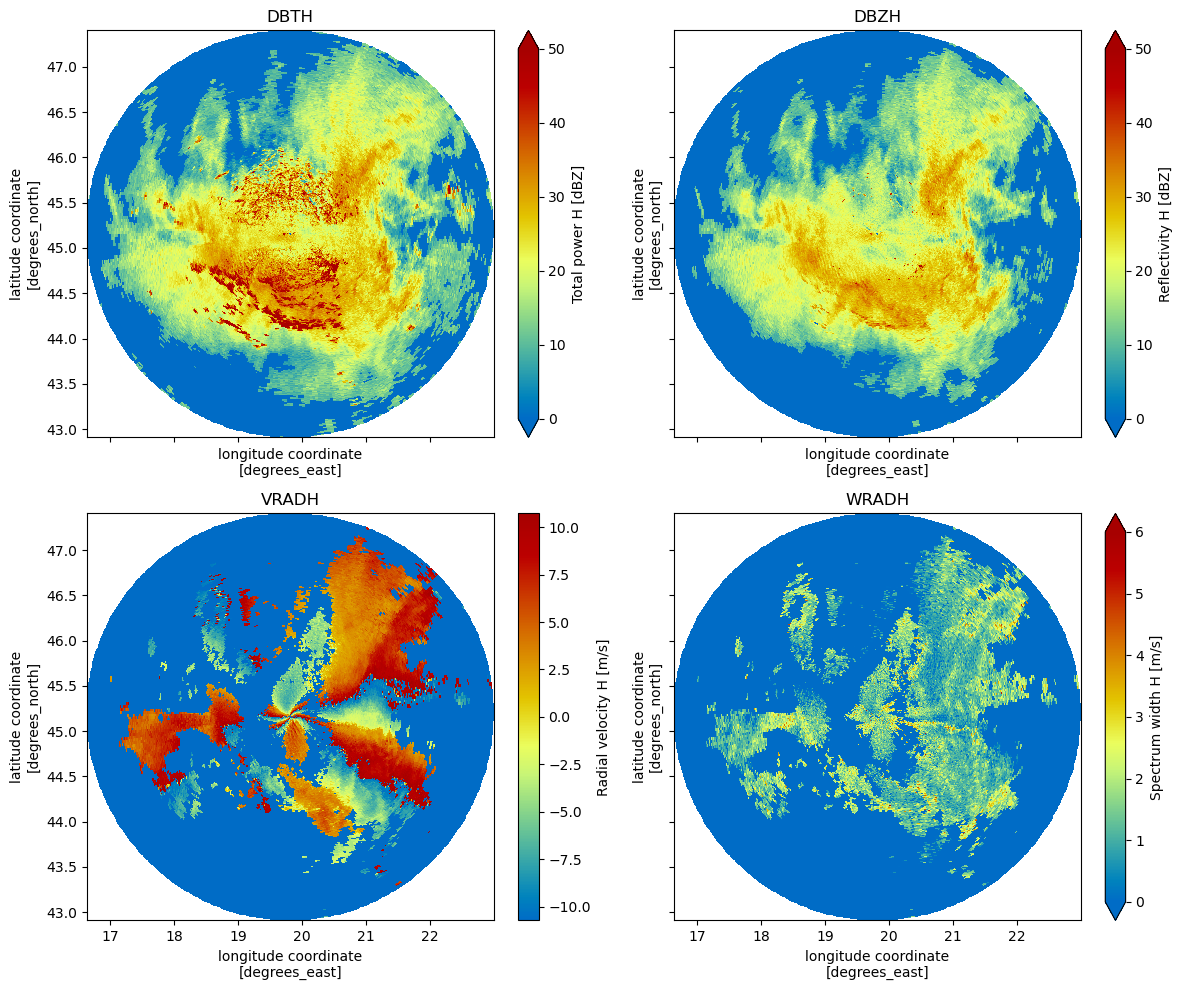

layout = (dbth + dbzh + vradh + wradh).cols(2)
layout
